Product Datasheet Search Results:

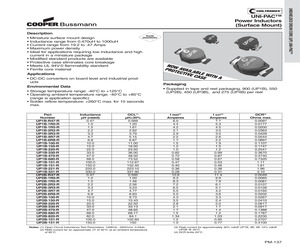

6 Pages, 750 KB, Original- UP2B-2R2-R
- Cooper Industries
- 1 ELEMENT, 2.2 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD
1 Pages, 304 KB, Original- UP2B-2R2-R
- Coiltronics / Eaton
- Fixed Inductors 2.2uH 6.1A 0.0107ohms
7 Pages, 2126 KB, Original- UP2B-2R2-R
- Eaton
- UP Series 2.2 uH ±20 % Tolerance 7.2 A Unshielded Low Profile Power Inductor
Product Details Search Results:
Cooperbussmann.com/UP2B-2R2-R
{"Status":"ACTIVE","Lead Free":"Yes","Terminal Finish":"NOT SPECIFIED","Mfr Package Description":"ROHS COMPLIANT","Number of Functions":"1","Terminal Placement":"DUAL ENDED","Number of Terminals":"2","Operating Temperature-Max":"85 Cel","Manufacturer Series":"UP","Operating Temperature-Min":"-40 Cel","Terminal Shape":"ONE SURFACE","China RoHS Compliant":"Yes","Core Material":"FERRITE","EU RoHS Compliant":"Yes","Inductor Type":"GENERAL PURPOSE INDUCTOR","Inductor Application":"POWER INDUCTOR","Inductance-Nom...
1339 Bytes - 11:10:58, 17 January 2026
Cooperindustries.com/UP2B-2R2-R
{"Category":"Inductors, Coils, Chokes","Current Rating":"7.2A","Tolerance":"\u00b120%","Catalog Drawings":"UP1B, 2B, 3B, 4B Series Pin Out UP2B Series","Operating Temperature":"-40\u00b0C ~ 85\u00b0C","Package / Case":"Nonstandard","Current - Saturation":"6.1A","Type":"Wirewound","Shielding":"Unshielded","DC Resistance (DCR)":"10.7 mOhm Max","Height - Seated (Max)":"0.236\" (6.00mm)","PCN Assembly/Origin":"Coiltronics Magnetics Facility 31/Aug/2013","Datasheets":"UNI-PAC (-R)","Inductance":"2.2\u00b5H","Sta...
1953 Bytes - 11:10:58, 17 January 2026
Eaton.com/UP2B-2R2-R
{"Rated Current-Max":"7.2 A","Tolerance (%)":"\u00b120 %","Inductance-Nom":"2.2 \u00b5H","Shielding":"No","DC Resistance":"0.0107 \u03a9"}...
1109 Bytes - 11:10:58, 17 January 2026
