Product Datasheet Search Results:

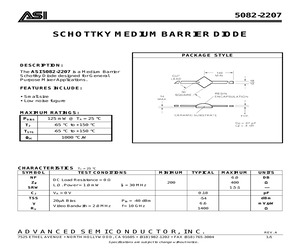

1 Pages, 21 KB, Original- 5082-2207
- Advanced Semiconductor, Inc.
- SILICON, MEDIUM BARRIER SCHOTTKY, MIXER DIODE
1 Pages, 21 KB, Original
6 Pages, 74 KB, Original- 5082-2207
- Agilent / Hewlett-packard
- Schottky Barrier Diode for Stripline, Microstrip Mixers and Detector
1 Pages, 135 KB, Scan- HP5082-2207
- N/a
- Shortform Semicon, Diode, and SCR Datasheets
8 Pages, 3659 KB, Scan- 5082-2207
- Hewlett-packard / Agilent
- Diode and Transistor Data Book 1980
Product Details Search Results:
Advancedsemiconductor.com/5082-2207
{"Status":"ACTIVE","Package Body Material":"CERAMIC, METAL-SEALED COFIRED","Noise Figure-Max":"6 dB","Terminal Form":"FLAT","Package Style":"MICROWAVE","Diode Element Material":"SILICON","Power Dissipation Limit-Max":"0.1250 W","Number of Elements":"1","Type of Schottky Barrier":"MEDIUM BARRIER","Terminal Position":"UNSPECIFIED","Diode Type":"MIXER DIODE","Package Shape":"SQUARE","Configuration":"SINGLE","Number of Terminals":"4","Surface Mount":"Yes"}...
1169 Bytes - 00:58:48, 25 May 2025
Various/5082-2207
{"z(if) Max. (Ohms) IF Impedance":"500","@R(L)(Ohms) (Test Condition)":"10","Frequency Band":"L-Ku","Semiconductor Material":"Silicon","z(if) Min. (Ohms) IF Impedance":"250","Frequency Min. (Hz)":"1.0G","Package":"Axial-E","Noise Figure Max. (dB)":"6.0","VSWR(in) Max. Input VSWR":"1.5","Military":"N","f(test) (Hz) Test Frequency":"9.4G","Frequency Max. (Hz)":"18G","@Pin (W) (Test Condition)":"1.0m"}...
876 Bytes - 00:58:48, 25 May 2025
