Product Datasheet Search Results:

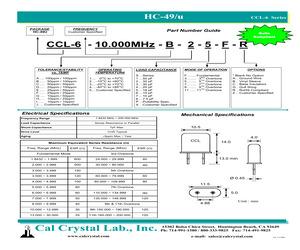

1 Pages, 161 KB, Original- CCL-6-7.999MHZ-I-2-5-F-C
- Cal Crystal Lab, Inc. / Comclok, Inc.
- QUARTZ CRYSTAL RESONATOR, 7.999 MHz
Product Details Search Results:
Calcrystal.com/CCL-6-7.999MHZ-I-2-5-F-C
{"Status":"ACTIVE","Physical Dimension":"L10.5XB4.0XH14.0 (mm)/L0.413XB0.157XH0.551 (inch)","Mounting Feature":"SURFACE MOUNT","Operating Temperature-Min":"-10 Cel","Load Capacitance":"18 pF","Aging":"5 PPM/YEAR","Crystal/Resonator Type":"PARALLEL - FUNDAMENTAL","Operating Frequency-Nom":"8 MHz","Operating Temperature-Max":"60 Cel","Series Resistance":"50 ohm","Drive Level":"1000 uW","Manufacturer Series":"CCL-6"}...
1230 Bytes - 13:52:03, 11 January 2026
