Did you mean: DS1804Z-010/T&R
Product Datasheet Search Results:

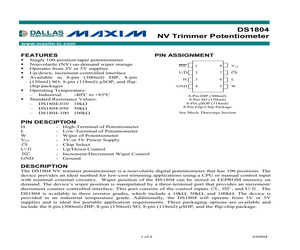

8 Pages, 178 KB, Original- DS1804Z-010/T&R/C01
- Maxim Integrated Products, Inc.
- NV Trimmer Potentiometer
Product Details Search Results:
Maxim-ic.com/DS1804Z-010/T&R
{"Terminal Finish":"TIN LEAD","Terminal Pitch":"1.27 mm","Terminal Form":"GULL WING","Operating Temperature-Max":"85 Cel","Resistance Law":"LINEAR","Resistance Tolerance-Max":"20 %","Supply Voltage-Nom (Vsup)":"5 V","Temperature Grade":"INDUSTRIAL","Total Resistance-Nom":"10000 ohm","Number of Positions":"100","Status":"ACTIVE","Operating Temperature-Min":"-40 Cel","Temperature Coefficient-Nom":"750 ppm/Cel","Package Body Material":"PLASTIC/EPOXY","Package Shape":"RECTANGULAR","Number of Functions":"1","Con...
1623 Bytes - 20:26:39, 08 January 2026
Maximintegrated.com/DS1804Z-010/T&R
{"Category":"Integrated Circuits (ICs)","Operating Temperature":"-40\u00b0C ~ 85\u00b0C","Package / Case":"8-SOIC (0.154\", 3.90mm Width)","Tolerance":"\u00b120%","Packaging":"Tape & Reel (TR)","Resistance (Ohms)":"10k","Product Photos":"8-SOIC","Product Training Modules":"Lead (SnPb) Finish for COTS Long-Term Supply Program","Datasheets":"DS1804","Resistance - Wiper (Ohms) (Typ)":"400","Standard Package":"2,500","Interface":"Up/Down (U/D, CS)","Configuration":"Potentiometer","Taper":"Linear","Number of Tap...
2243 Bytes - 20:26:39, 08 January 2026
Documentation and Support
Use our online request for specific proposed solutions or send your technical question directly to a product specialist at request:
| File Name | File Size (MB) | Document | MOQ | Support |
|---|---|---|---|---|
| SS5J3-60-08DS18.pdf | 40.58 | 1 | Request |
