Product Datasheet Search Results:
2 Pages, 133 KB, Original- DTC143ESA
- Jiangsu Changjiang Electronics Technology Co., Ltd.
- Digital transistors (built-in resistors)
4 Pages, 162 KB, Original- DTC143ES3
- Cystech Electronics Corp.
- PNP Digital Transistors (Built-in Resistors)
3 Pages, 529 KB, Original- DTC143ESA-AP
- Micro Commercial Components Corp.
- 100 mA, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92
3 Pages, 529 KB, Original- DTC143ESA-BP
- Micro Commercial Components Corp.
- SMALL SIGNAL TRANSISTOR
14 Pages, 137 KB, Original- PDTC143ES
- Nxp Semiconductors
- TRANS NPN 50V 100MA SOT54 - PDTC143ES,126
14 Pages, 141 KB, Original- PDTC143ES,126
- Nxp Semiconductors
- TRANS PREBIAS NPN 500MW TO92-3
14 Pages, 141 KB, Original- PDTC143ES AMO
- Nxp Semiconductors / Philips Semiconductors
- NPN resistor-equipped transistors; R1 = 4.7 kOhm, R2 = 4.7 kOhm - Complement: PDTA143ES ; hFE max:>20 ; hFE min: 20 ; I<sub>O</sub> max: 100 mA; Input resistor: 4.7 kOhm; Polarity: NPN ; Ptot max: 500 mW; Resistor ratio: 1 ; VCEO max: 50 V

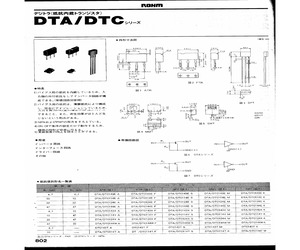

3 Pages, 878 KB, Scan- DTC143ES
- Rohm Electronics
- DTA/DTC SERIES

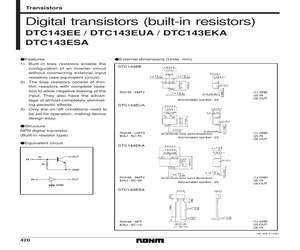

3 Pages, 66 KB, Original- DTC143ESA
- Rohm Co., Ltd.
- 100 mA, 50 V, NPN, Si, SMALL SIGNAL TRANSISTOR
4 Pages, 63 KB, Original- DTC143ESATP
- Rohm Semiconductor
- TRANS PREBIAS NPN 300MW SPT
Product Details Search Results:
Mccsemi.com/DTC143ESA-AP
{"Status":"ACTIVE","Package Body Material":"PLASTIC/EPOXY","Mfr Package Description":"ROHS COMPLIANT, PLASTIC, TO-92S, 3 PIN","Terminal Form":"THROUGH-HOLE","Package Style":"CYLINDRICAL","DC Current Gain-Min (hFE)":"20","Transistor Application":"SWITCHING","Transition Frequency-Nom (fT)":"250 MHz","Collector Current-Max (IC)":"0.1000 A","Transistor Element Material":"SILICON","Terminal Position":"BOTTOM","Transistor Polarity":"NPN","Package Shape":"ROUND","Configuration":"SINGLE WITH BUILT-IN RESISTOR","Tra...
1346 Bytes - 21:27:51, 17 January 2026
Mccsemi.com/DTC143ESA-BP
{"Status":"ACTIVE","Transistor Type":"GENERAL PURPOSE SMALL SIGNAL"}...
779 Bytes - 21:27:51, 17 January 2026
Nxp.com/PDTC143ES,126
{"Category":"Discrete Semiconductor Products","Current - Collector (Ic) (Max)":"100mA","Frequency - Transition":"-","Transistor Type":"NPN - Pre-Biased","Product Photos":"TO-92-3(StandardBody),TO-226_straightlead","Family":"Transistors (BJT) - Single, Pre-Biased","Resistor - Base (R1) (Ohms)":"4.7k","Current - Collector Cutoff (Max)":"1\u00b5A","Series":"-","Vce Saturation (Max) @ Ib, Ic":"150mV @ 500\u00b5A, 10mA","Voltage - Collector Emitter Breakdown (Max)":"50V","Power - Max":"500mW","Packaging":"Tape &...
1842 Bytes - 21:27:51, 17 January 2026
Rohm.com/DTC143ES
{"V(CE)sat Max.(V)":".30","Absolute Max. Power Diss. (W)":"300m","V(BR)CBO (V)":"50","h(FE) Min. Static Current Gain":"20","No. of Units Per Package":"1","I(C) Abs.(A) Collector Current":"100m","Structure NPN/PNP":"NPN","@V(CBO) (V) (Test Condition)":"50","I(CBO) Max. (A)":"500n","Package":"TO-92var","f(T) Min. (Hz) Transition Freq":"250M","@V(CE) (V) (Test Condition)":"10","@I(B) (A) (Test Condition)":"250u","Collector-Emitter Diode? Y/N":"No","V(BR)CEO (V)":"50","RBE (Ohms) Base-Emit. resistor":"4.7k","@I...
1105 Bytes - 21:27:51, 17 January 2026
Rohm.com/DTC143ESA
{"Status":"DISCONTINUED","Lead Free":"Yes","Terminal Finish":"TIN SILVER COPPER","Package Body Material":"PLASTIC/EPOXY","Transistor Polarity":"NPN","Terminal Form":"THROUGH-HOLE","Power Dissipation Ambient-Max":"0.3000 W","Package Style":"IN-LINE","DC Current Gain-Min (hFE)":"20","Collector-emitter Voltage-Max":"50 V","Transistor Application":"SWITCHING","Transition Frequency-Nom (fT)":"250 MHz","Collector Current-Max (IC)":"0.1000 A","Transistor Element Material":"SILICON","EU RoHS Compliant":"Yes","Termi...
1387 Bytes - 21:27:51, 17 January 2026
Rohm.com/DTC143ESATP
{"Category":"Discrete Semiconductor Products","Current - Collector (Ic) (Max)":"100mA","Frequency - Transition":"250MHz","Transistor Type":"NPN - Pre-Biased","Product Photos":"SC-72-3_SPT","Family":"Transistors (BJT) - Single, Pre-Biased","Resistor - Base (R1) (Ohms)":"4.7k","Current - Collector Cutoff (Max)":"500nA","Series":"-","Vce Saturation (Max) @ Ib, Ic":"300mV @ 500\u00b5A, 10mA","Voltage - Collector Emitter Breakdown (Max)":"50V","Power - Max":"300mW","Packaging":"Tape & Box (TB)","Datasheets":"DTC...
1654 Bytes - 21:27:51, 17 January 2026
Various/DTC143ESA
Int.rez (R1=4.7K .R4=4.7K, DTC143ESA, Silicon, NPN, 300mW, 50V, 100mA, 150°C, 140MHz, 20MIN, ROM, TO92...
574 Bytes - 21:27:51, 17 January 2026
Documentation and Support
Use our online request for specific proposed solutions or send your technical question directly to a product specialist at request:
| File Name | File Size (MB) | Document | MOQ | Support |
|---|---|---|---|---|
| 100-DTC180.pdf | 1.35 | 1 | Request |
