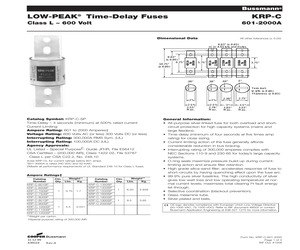

{"Status":"ACTIVE","Lead Free":"Yes","Terminal Finish":"NOT SPECIFIED","Body Height":"95.3 mm","Body Length or Diameter":"61 mm","Rated Current":"700 A","Rated Voltage(DC)":"300 V","Electric Fuse Type":"ELECTRIC FUSE","Mounting Feature":"INLINE/HOLDER","Rated Breaking Capacity":"300000 V","Terminal Shape":"TAB/BLADE","Rated Voltage(AC)":"600 V","Manufacturer Series":"KRP-C","EU RoHS Compliant":"Yes","Blow Characteristic":"TIME DELAY"}...

{"Category":"Circuit Protection","Size / Dimension":"2.500\" Dia x 3.750\" L (63.50mm x 95.25mm)","Product Photos":"KRP-C-601SP thru 800","Family":"Electrical, Specialty Fuses","DC Cold Resistance":"-","Color":"-","Series":"KRP-C","Package / Case":"Cylindrical, Blade Terminal (Bolt)","Operating Temperature":"-","Current":"700A","Datasheets":"KRP-C, 601-2000A","Fuse Type":"Slow Blow, Time Lag","Standard Package":"1","Mounting Type":"Bolt Mount","Voltage - Rated":"600VAC, 300VDC","Melting I\u00b2t":"-"}...

{"Packaging":"Carton","Current Rating":"700(A)","Voltage Rating (VDC)":"300(V)","Voltage Rating":"600","Mounting":"Bolt","Product Height (mm)":"Not Required(mm)","Fuse Size":"95.25 X 64.26","Termination Style":"TAP","Acting":"Slow Blow","Terminal Pitch (mm)":"Not Required(mm)","Product Length (mm)":"95.25(mm)","Housing Material":"Glass Melamine","Rad Hardened":"No","Product Depth (mm)":"Not Required(mm)","Product Diameter (mm)":"64.26(mm)","Seated Plane Height":"Not Required(mm)","Type":"Class L","Pin Count...
